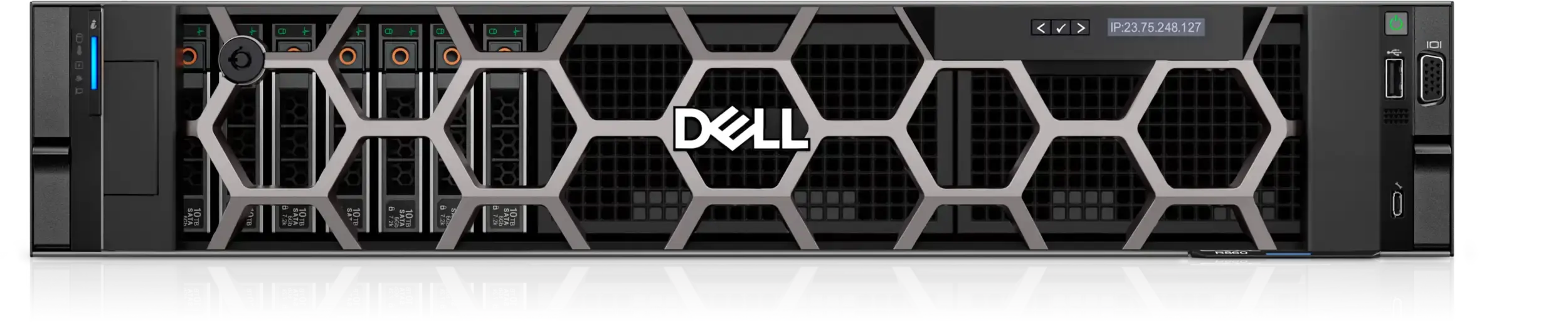

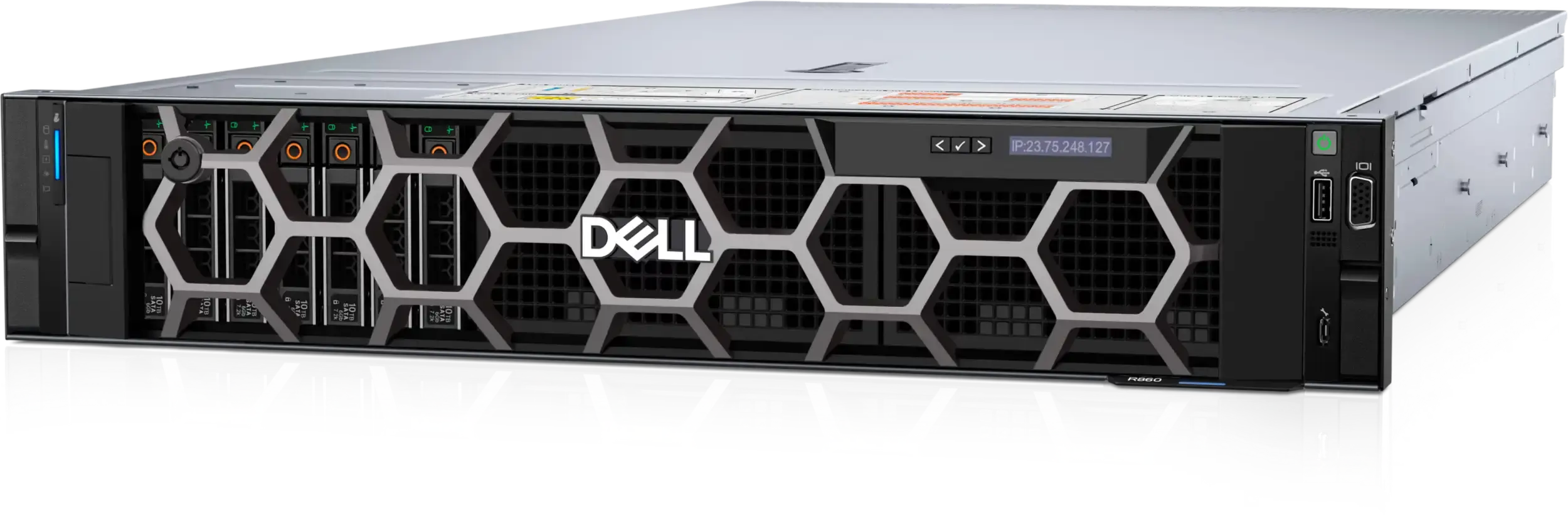

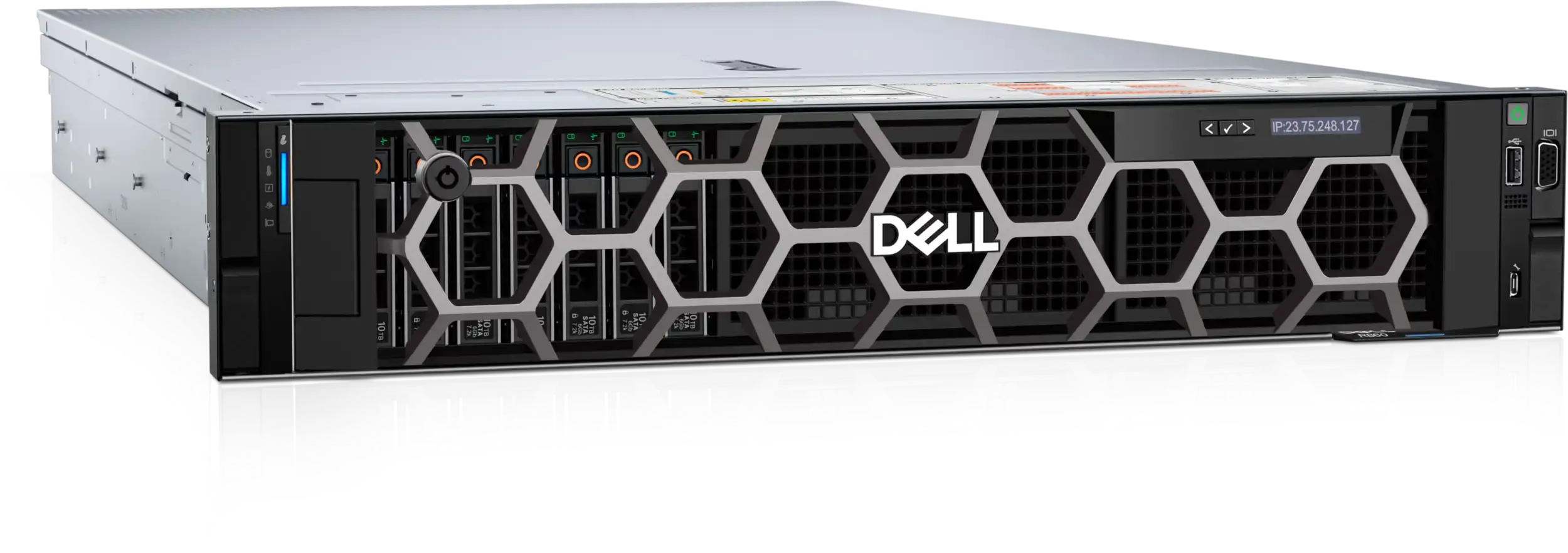

DELL PowerEdge R860 Server
You might be interested in
Free shipping across the UAE, GCC and the Maghreb Contact manager
5-year full seller's warranty
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
R860
Base price - AED 36 671
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Total price
### ###
### ###
Can’t find the parts you need? We’ll find a solution
Base price - AED 36 671
Dell R860 16SFF
Base price - AED 36 671
Condition
New
Total price
from
### ###
### ###
Free shipping across the UAE, GCC and the Maghreb Contact manager
5-year full seller's warranty
Work for you since 2018
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
DELL R860 Technical specifications
Processor
Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist Technology
Memory
- 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s
- Supports registered ECC DDR5 DIMMs only
Storage controllers
- Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i, HBA465i
- External Controller: PERC H965e
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
- External HBA (non-RAID): HBA355e, HBA465e
- Software Raid: S160
Drive Bays
Front bays:
- Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB
- Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) drives max 61.44 TB
- Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB
- Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB
- Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB
- Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) drives max 30.72 TB
- Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB
Power Supplies
- 1100 W Titanium 100 — 240 VAC or 240 HVDC, hot swap redundant
- 1400 W Platinum 100 — 240 VAC or 240 HVDC, hot swap redundant
- 1800 W Titanium 200 — 240 VAC or 240 HVDC, hot swap redundant
- 2400 W Platinum 100 — 240 VAC or 240 HVDC, hot swap redundant
- 2800 W Titanium 200 — 240 VAC or 240 HVDC, hot swap redundant
Cooling Options
- Air cooling
- Optional Direct Liquid Cooling (DLC)
Fans
- Standard (STD) fans
- Up to 6 sets hot plug fans
Dimensions and Weight
- Height – 86.8 mm (3.41 inches)
- Width – 482 mm (18.97 inches)
- Depth – 883.2 mm (34.77 inches) with bezel
– 869.2 mm (34.22 inches) without bezel
A server without drives and PSU installed – 13.09 kg (28.85 lbs)
Form Factor
2U rack server
Embedded Management
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
- iDRAC Service Module
- Quick Sync 2 wireless module
Bezel
Optional LCD bezel or security bezel
OpenManage Software
- CloudIQ for PowerEdge plug in
- OpenManage Enterprise
- OpenManage Enterprise Integration for VMware vCenter
- OpenManage Integration for Microsoft System Center
- OpenManage Integration with Windows Admin Center
- OpenManage Power Manager plugin
- OpenManage Service plugin
- OpenManage Update Manager plugin
Mobility
OpenManage Mobile
OpenManage Integrations
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- Red Hat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
Security
- Cryptographically signed firmware
- Data at Rest Encryption (SEDs with local or external key mgmt)
- Secure Boot
- Secured Component Verification (Hardware integrity check)
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC
2 x 1 GbE LOM card (optional)
Network Options
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Ports
Front Ports
- 1 x iDRAC Direct (Micro-AB USB) port
- 1 x USB 2.0
- 1 x VGA
- 1 x Dedicated iDRAC ethernet port
- 1 x USB 3.0
- 1 x USB 2.0
- 1 x Serial (optional)
- 1 x VGA (optional for Direct Liquid Cooling configuration)
- 1 x USB 3.0 (optional)
PCIe
Up to eight PCIe slots:
- Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
- Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
- Slot 3: 1 x16 Gen5 Low profile, Half length
- Slot 4: 1 x16 Gen5 Full height, Half length
- Slot 5: 1 x16 Gen5 Full height, Half length
- Slot 6: 1 x16 Gen5 Low profile, Half length
- Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
- Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Operating System and Hypervisors
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
