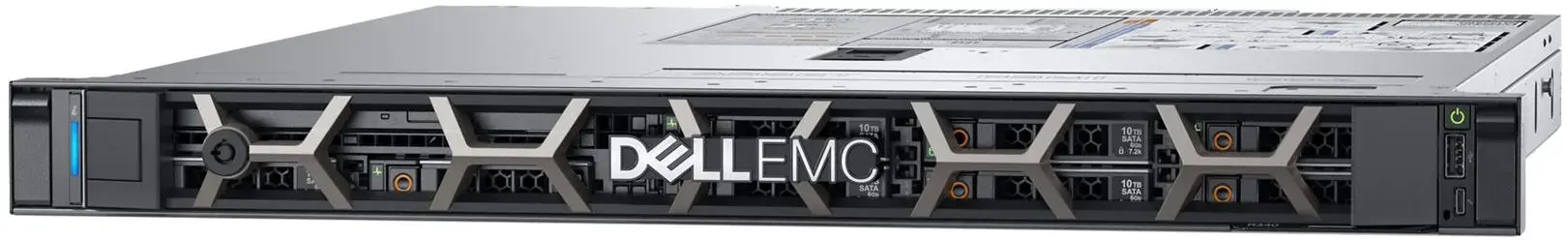

DELL PowerEdge R340 Server
You might be interested in
R340
Base price - AED 2 073
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Software RAID: PERC S140
External controllers: 12Gbps SAS HBA
Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)
Internal Dual SD Module:
2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)
Chassis width: 434.00mm (17.08 in)
Chassis depth: 595.63mm (23.45 in) (3.5” HDD config)
Chassis depth: 544.836mm (21.45 in) (2.5” HDD config)
Note: These dimensions do not include: bezel, redundant PSU
Chassis weight: 13.6 kg (29.98 lb.)
iDRAC Direct
OpenManage Power Manager
OpenManage Mobile
Microsoft® System Center
VMware® vCenter™
BMC Truesight (available from BMC)
Red Hat Ansible
Connections:
Nagios Core & Nagios XI
Micro Focus Operations Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
iDRAC RESTful API with Redfish
OpenManage Server Administrator
Dell EMC Repository Manager
Dell EMC System Update
Dell EMC Server Update Utility
Dell EMC Update Catalogs
Dell EMC RACADM CLI
IPMI Tool
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires iDRAC Enterprise or Datacenter)
System Erase
2 x 1GbE LOM Network Interface Controller (NIC) ports
Front ports:
1x USB 2.0, 1 x IDRAC micro USB 2.0 management port
Rear ports: 2 x USB 3.0, VGA, serial connector
2 x PCIe Gen 3.0 slots:
• One x8 slot low-profile, half-length with x4 slot width
• One x16 slot low-profile/full-height, half-length
with x8 bandwith
Microsoft® Windows Server® with Hyper-V (2016 and 2019)
Red Hat® Enterprise Linux
Ubuntu® Server LTS
SUSE® Linux Enterprise Server
VMware® ESXi
Dell PowerEdge R340 Review
Dell EMC PowerEdge R340 is a reasonably priced one-processor entry-level 1U server mounted in a 19″ cabinet or rack. Suitable for small organizations, branches and service providers. Unlike other basic tower models, R340 is of higher density, which makes it suitable for implementing IT-infrastructure in limited space, as well as effective solving of routine tasks of small business and remote branches.
Scaleability
Dell R340 is one of the most basic rack-mounted servers in 14th Gen series, so it is of small scaleability. At the same time, there is more than enough capacity to solve basic tasks. Dell Technologies engineers gave R340 the following characteristics:
-
One processor of the following series: Intel Xeon E-2200, Intel Pentium, Intel Core i3, Intel Celeron,
-
Up to 4 DDR4 DIMM slots, UDIMM and RDIMM support, up to 2666 MT/s and 64 GB,
-
Support of PCIe 3.0 standard with ability to scale it to 2 × PCIe 3.0 (x16/x8),
-
Up to two RJ-45 x 1 Gbps on the back,
-
Up to 4 x HDD format 3.5'' SATA, SAS or SSD, up to 8 x 2.5 SATA, SAS or SSD with hot swap,
-
Software S140 and hardware RAID controllers support, including BOSS (Boot Optimized Storage Subsystem),
-
Up to two 350W (Bronze) or 550W (Platinum) hot-swappable power supplies.
Control and automation
Dell R340 supports iDRAC 9 Basic out-of-the-box technology: it is a proprietary implementation of IPMI 2.0 protocol to control the server as if it is right in front of you. Fee-based Express-level and Enterprise-level licenses include additional functionality.
Dell EMC OpenManage to easily control equipment and automate routine processes.
OpenManage Essentials to save system administrators' time spent on implementation, update, monitoring and maintenance of IT infrastructure. You can centralize control and decrease labour payment expenses.
iDRAC Quick Sync 2 technology with wireless NFC module and OpenManage Mobile app to get important notifications and monitor and control the server using your smartphone.
Security
Dell R340 is based on Dell Technologies cybersecure architecture. The server receives firmware updates and security patches during its whole lifecycle. That's why your system administrator can reliably implement critical business processes and cybersecure them.
-
Secure logistics ensure that the server will travel from the manufacturing plant to the end-client safely,
-
Cryptographic signature and Secure Boot protocol (part of UEFI specification) ensure data security,
-
Cryptoprocessor (TPM 2.0) installed in a motherboard chipset is available as an option,
-
IDRAC 9 Server Lockdown function prevents any unauthorized access and protects the server from malware (requires Enterprise-level or Datacenter-level fee-based license),
-
System Erase function to remove all data (including cache and logs) from any drives (HDD, SSD, system memory) remotely, quickly, and securely. Thanks to that, you can reset the server to factory settings, dispose it or sell it after use without any risks of confidential data leak,
-
Software and hardware RAID controllers.
What's new
Compared to the previous generation of R330, R340 server has become more energy efficient and powerful, and has been equipped with the latest generation of iDRAC 9. It has an upgraded a C246 chipset, a modern generation of processors, 2666 MT/s memory, new RAID controllers, up to two M.2 drives support, an additional PCIe 3.0 slot and more.
