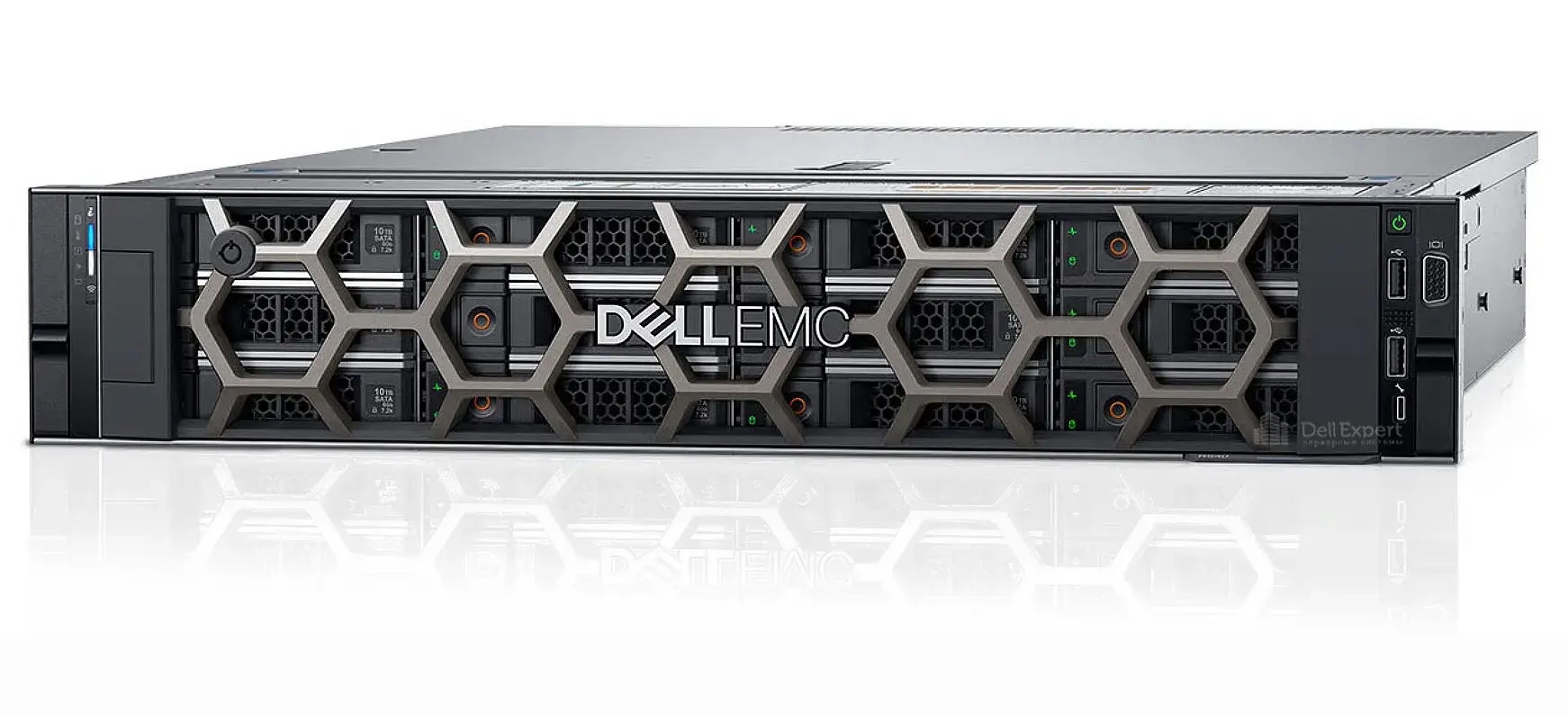

DELL PowerEdge R740xd Server
You might be interested in
R740xd
Base price - AED 4 447
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB
External PERC (RAID): H840
12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID)
Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB
Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD
495W, 750W, 1100W,
1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy
Up to 6 hot plugs fans with full redundancy
Max depth: 715.5 mm
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Microsoft® System Center,
VMware® vCenter™, BMC Software
Connections: Nagios & Nagios XI,
Oracle Enterprise Manager,
HP Operations Manager,
IBM Tivoli Netcool/OMNIbus,
IBM Tivoli® Network Manager,
CA Network and Systems Management
Secure Boot
System Lockdown
Secure erase
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

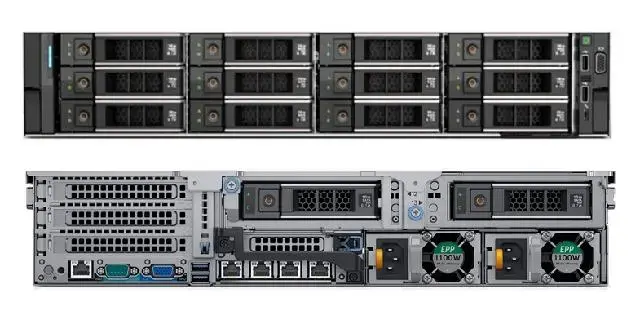

Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB
Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
Video card: VGA
Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Dell PowerEdge R740xd Review
Dell EMC PowerEdge R740xd is a two-processor 2U server mounted in a 19″ cabinet or rack. R740xd is the same R740, but with a modified disk subsystem. It is perfect for a wide variety of tasks which require high computing powers, storage, scalability, graphics, and other resources. You can use it to work with Big Data, analyze, store, process and transfer data, as well as to implement software-defined storage (SDS).
There is also a similar R740xd2 model with a larger disk holder, but with fewer PCIe 3.0 expansion slots and no GPGPU support.
Scaleability
Dell R740xd is a highly-scaleable server: you won't have to choose between high computing powers or large storage. To make this server a highly effective solution, Dell Technologies engineers gave it the following characteristics:
-
Support of up to two Intel Xeon Scalable 2nd generation (up to 28 cores and 56 thread) processors,
-
Up to 24 DDR4 slots, RDIMM and LRDIMM support, max 7.68 TB, 2666 MT/s. 12 slots can be used with NVDIMM,
-
Support of PCIe 3.0 standard with ability to scale it to 8 × PCIe 3.0 (various combinations of x16/x8),
-
Support of various network parameters:
-
4 RJ-45 × 1 Gbps,
-
2 RJ-45 × 10 Gbps and 2 RJ-45 × 1 Gbps,
-
4 RJ-45 × 10 Gbps,
-
2 RJ-45 × 1 Gbps and 2 SFP+ × 10 Gbps,
-
4 SFP+ × 10 Gbps,
-
2 SFP28 × 25 Gbps.
-
Hot-swappable disks and various bins:
-
Front holder: 24 x 2.5'' SAS/SATA/NVMe to 153 TB or 12 x 3.5'' SAS/SATA (HDD) to 144 TB,
-
Internal holder: 4 x 2.5'' SAS/SATA/NVMe up to 25 TB or 4 x 3.5'' SAS/SATA HDD up to 48 TB,
-
Rear holder: 4 x 2.5", up to 25 TB SAS/SATA/NVMe SSD or 2 x 3.5" SAS/SATA HDD up to 24 TB.
-
GPGPU and FPGA can be optionally installed on a 24 x 2.5'' chassis:
-
3 x DW or 6 x SW GPGPU,
-
3 x DW or 4 x SW FPGA.
The list of supported accelerator cards is available at the Dell.com/GPU.
-
Software S140 and hardware RAID controllers support, including BOSS (Boot Optimized Storage Subsystem) with the ability to install two M.2 SSD drives,
-
Hot-swappable power supplies: Gold 1100W 48V DC, Titanium 750W, Platinum 495W, 750W, 750W AC and 240V DC mixed mod, 1100W, 1100W AC and 380V DC mixed mod, 1600W, 2000W and 2400W.
Control and automation
Dell R740xd supports iDRAC 9 Express out-of-the-box technology: it is a proprietary implementation of IPMI 2.0 protocol to control the server as if it is right in front of you. Express level license is part of rack-mounted server, tower server and modular 600-series (and above) system scope of supply. Fee-based Enterprise- and Datacenter-level licenses include additional functionality.
Dell EMC OpenManage to easily control equipment and automate routine processes.
OpenManage Essentials to save system administrators' time spent on implementation, update, monitoring and maintenance of IT infrastructure. You can centralize control and decrease labour payment expenses.
iDRAC Quick Sync 2 technology with wireless NFC module and OpenManage Mobile app to get important notifications and monitor and control the server using your smartphone.
Security
Dell R740xd is based on Dell Technologies cybersecure architecture. The server receives firmware updates and security patches during its whole lifecycle. That's why your system administrator can reliably implement critical business processes and cybersecure them.
-
Secure logistics ensure that the server will travel from the manufacturing plant to the end-client safely,
-
Cryptographic signature and Secure Boot protocol (part of UEFI specification) ensure data security,
-
Cryptoprocessor (TPM 2.0) installed in a motherboard chipset is available as an option,
-
IDRAC 9 Server Lockdown function prevents any unauthorized access and protects the server from malware (requires Enterprise-level or Datacenter-level fee-based license),
-
System Erase function to remove all data (including cache and logs) from any drives (HDD, SSD, system memory) remotely, quickly, and securely. Thanks to that, you can reset the server to factory settings, dispose it or sell it after use without any risks of confidential data leak,
-
Software and hardware RAID controllers.
What's new
Compared
to the previous generation of R740, R740xd server has become more energy
efficient and powerful, and has been equipped with the latest generation of
iDRAC 9. It has an upgraded M.2 SATA interface, a C620 chipset, a modern
generation of processors, more disk holder options and more power supplies for
VDI, NVMe drives support, new RAID controllers, an additional PCIe 3.0 slot and
more.
