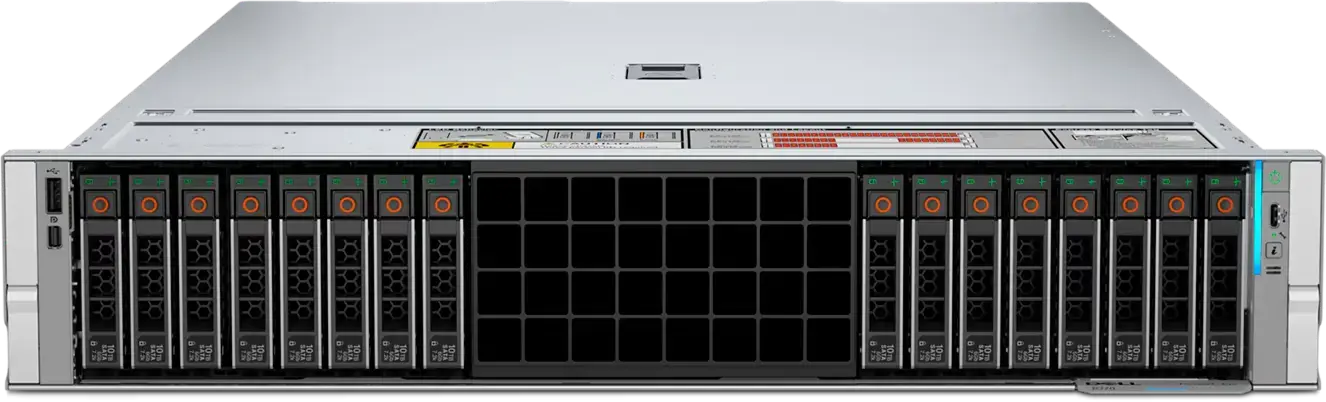

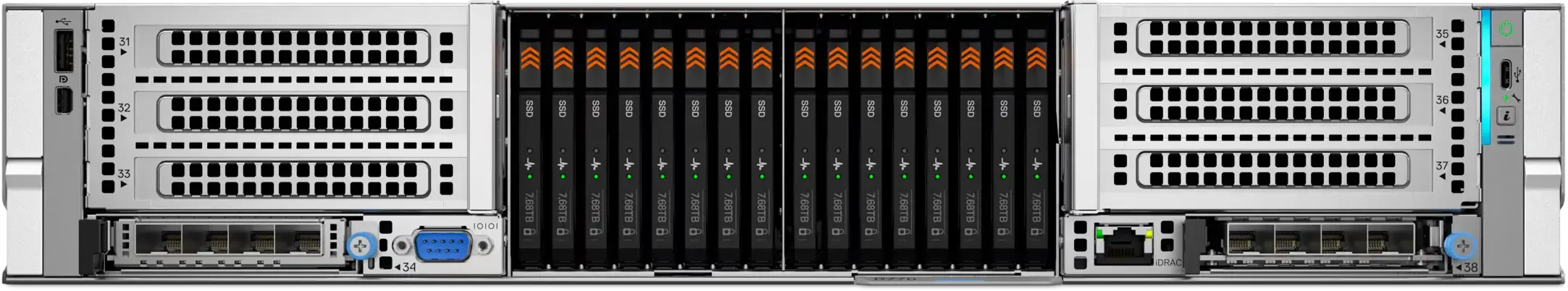

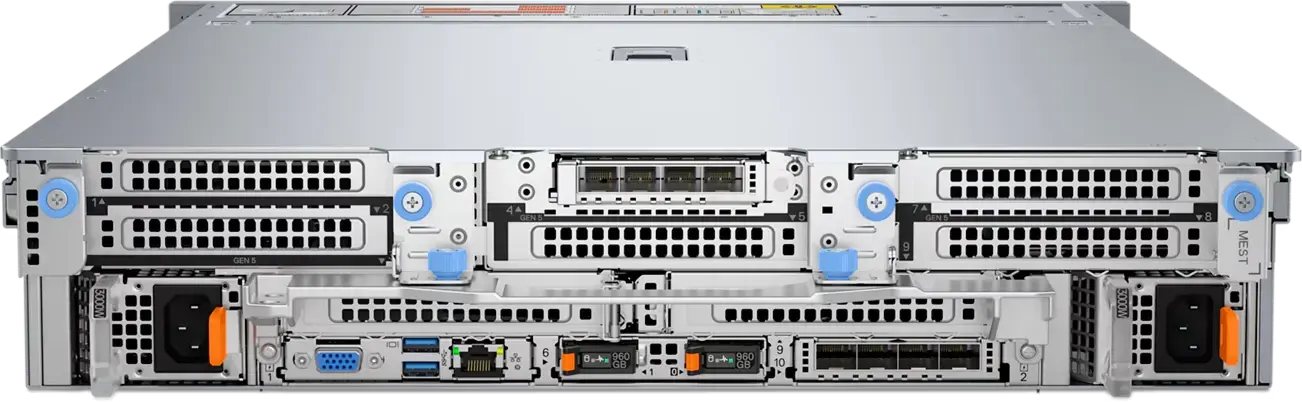

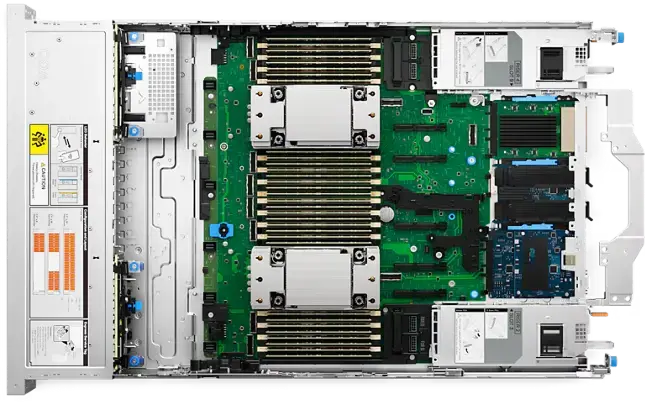

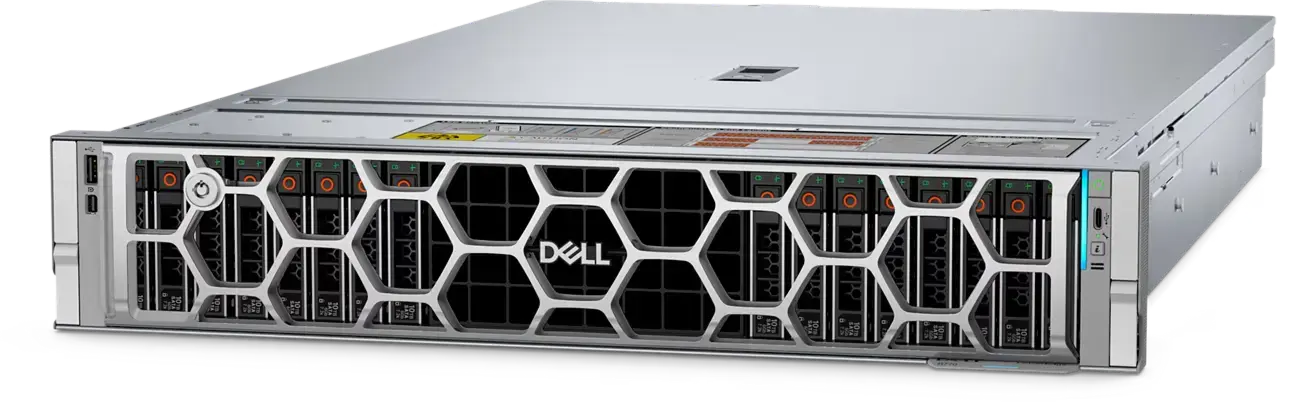

DELL PowerEdge R770 Server
You might be interested in
Free shipping across the UAE, GCC and the Maghreb Contact manager
5-year full seller's warranty
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
R770
Base price - AED 68 218
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
-
Condition
Refurbished
-
CPU
2×8GB DDR4 RDIMM 2133MHz
-
RAM
noHDD (up to 8 HDD 2.5'' SFF)
Total price
### ###
### ###
Can’t find the parts you need? We’ll find a solution
Base price - AED 68 218
Dell R770 16SFF
Base price - AED 68 218
Condition
New
Total price
from
### ###
### ###
Free shipping across the UAE, GCC and the Maghreb Contact manager
5-year full seller's warranty
Work for you since 2018
Up to 70% reduction in IT infrastructure CAPEX
Wide range of equipment in stock
DELL R770 Technical specifications
Processor
Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
Memory
- 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
- Supports registered ECC DDR5 DIMMs only
Storage controllers
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
- Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
Front and Rear Bays
- No backplane configuration
- Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB also comes with FIO configuration
- Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB also comes with FIO configuration
- Up to 32 x EDSFF E3.S Gen5 NVMe max 1966.08 TB
- Up to 8 x 2.5 inch SATA/NVMe max 491.52 TB
- Up to 8 x 2.5-inch Universal max 491.52 TB
- Up to 16 x 2.5 inch SATA max 61.44TB
- Up to 24 x 2.5 inch SATA max 92.16 TB
- Up to 16 x 2.5 inch SATA + 8 x 2.5-inch NVME max 552.96 TB
- Up to 40 x EDSFF E3.S Gen5 NVMe max 2457.6 TB
- Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB on the rear
Hot swap Power Supplies
- 800 W Platinum 100—240 VAC or 240 VDC
- 1100 W Platinium 100—240 VAC or 240 VDC
- 1500 W Titanium 100—240 VAC or 240 VDC
- 1100 W Titanium 100—240 VAC or 240 VDC
- 3200 W Titanium 200—240 VAC or 240 VDC
- 800 W Titanium 100—240 VAC or 240 VDC
- 3200 W 277 VAC and 336 HVDC Titanium
- 1400 W -48VDC 60mm
- 1500 W 277 VAC and 336 HVDC Titanium*
- 2400 W Titanium 100—240 VAC or 240 VDC*
- 1800 W HLAC Titanium 200—240 VAC or 240 VDC*
Cooling Options
- Air cooling and Direct Liquid Cooling
Fans
- High performance Silver (HPR SLVR) fans/High performance Gold (HPR GOLD) fans
- Up to 6 hot swappable fans
Dimensions and Weight
- Height – 86.8 mm (3.42 inches)
- Width – 482 mm (18.97 inches)
- Weight – 28.53 kg (62.89 pound)
- 802.40 mm (31.59 inches) with bezel
- 801.51 mm (31.56 inches) without bezel
- 814.52 mm (32.07 inches) without bezel
Form Factor
2U rack server
Embedded Management
- iDRAC
- iDRAC Direct
- iDRAC RESTful API with Redfish
- RACADM CLI
- iDRAC Service Module (iSM)
- Quick Sync 2 wireless module
- NativeEdge Endpoint*
- NativeEdge Orchestrator*
Bezel
Optional security bezel
Security
- Cryptographically signed firmware
- Data at Rest Encryption (SEDs with local or external key mgmt)
- Secure Boot
- Secured Component Verification (Hardware integrity check)
- Silicon Root of Trust
- System Lockdown
- System Lockdown (requires iDRAC10 Enterprise or Datacenter)
- Chassis Intrusion Detection
- TPM 2.0 FIPS, CC-TCG certified
Network options
OCP NIC card 3.0 : Two slots on the front or two slots on the rear
BOSS
Slot 34: Front BOSS slot or
Slot 6: Rear BOSS slot
Slot 6: Rear BOSS slot
GPU options
Up to 6 x 75 W FHHL or up to 2 x 450 W DWFL
Ports
Front Ports:
- 1 x USB 2.0 Type C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated ethernet port for iDRAC management
- 1 x Dedicated ethernet port for iDRAC management
- 1 x VGA
- 2 x USB 3.1 Type A ports
- 1 x USB 3.1 Type A port
PCIe
- Upto two PCIe slots ( x16 connectors)
- Slot 31 1 x 16 Gen5 Full Height - Half Length or Full Length on front Riser
- Slot 36 1 x 16 Gen5 Full Height - Half Length on front Riser
- Up to eight PCIe slots (x8 and x16 connectors)
- Slot 1 1 x 8 Gen5 Full Height - Half Length
- Slot 2 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 3 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Low Profile
- Slot 4 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 8 or 1 x 16 OCP 3.0
- Slot 5 2 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 7 1 x 16 Gen5 Full Height - Half Length or 1 x 16 Gen5 Dual Width Full Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 8 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length
- Slot 9 1 x 16 Gen5 Full Height - Half Length or 1 x 8 Gen5 Full Height - Half Length or 1 x 16 Low Profile- Half Length
Operating System and Hypervisors
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V (P-Core only)
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Dell NativeEdge OS*
DELL PowerEdge R770 Server
Frequently
asked
questions
asked
questions
Got your own question?
Ask to consultant
Ask to consultant
What is included in the 5-year warranty for the DELL PowerEdge R770 Server?
The Servermall warranty includes:
- Access on a 24x7 basis (including holidays) to the Servermall Customer Service and Support organization for troubleshooting assistance of Servermall Refurbished Servers and Associated Goods and select software issues.
- 5 year warranty. In case of problem diagnostics or repair, we will do on the server installation site. For free.
- On-site dispatch of replacement parts to the Installation Site or other mutually agreed upon Customer’s business location approved by Servermall to address a Product problem.
How to get a discount on the DELL PowerEdge R770 Server?
Subscribe to our news and get a 212 AED discount on the server.
What are the terms of delivery of the DELL PowerEdge R770 Server?
Free shipping across the UAE, GCC and the Maghreb if ordering equipment from 2200 AED. Delivery from 4 working days.
